DES320D 2 Two Double Side Station Unit Blank Label Rotary Die Cutting and Slitting Machine

Message

Send

$12,000.00

Have chosenThere are no options selected.

Start To Order

Add To Cart Successfully!

SEND INQUIRY

LIVE

DES320D 2 Two Double Side Station Unit Blank Label Rotary Die Cutting and Slitting Machine

DES320D 2 Two Double Side Station Unit Blank Label Rotary Die Cutting and Slitting Machine

1-3 Set

$12,000.00

≥ 4 Set

$11,000.00

Item No.20220813cb518
MOQ1 Set

Tag sourcing

Choice

Color classification / size

Customization:

Online customization Customise Now

Customized logo (Min. Order: 1 Set)

Customized packaging (Min. Order: 1 Set)

Add Request About This Product

Max file 5MB each

If lager file please send us email

SUBMIT

Quantity:

From $12000.0011000.00 / Set

$12,000.00

You save $ -12,000.00

Add to Cart

Inquiry

Trade Assuranceprotects your orders

On-time Dispatch Guarantee

On-time dispatch is guaranteed or you will be eligible to claim platform compensation.

Refund Policy

If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Description Company Overview Inquiry

Quick Details Packaging & Delivery

Quick Details
Warranty	1 Year
Web Width	320 mm
Place of Origin	CN;ZHE
Slitting Speed	120 m/min
Brand Name	ZIYE
Unwind	3
Auto Counter	Yes
Rewind	Turret Rewind (1.5
Operator	1 person
Slitting Width	≥15mm
Web Guide System	Yes, Two Electrical Eyes
Automatic Tension Control	2 Set
Name	Blank Label Rotary Die Cutting and Slitting Machine
After-sales Service Provided	Free spare parts
Weight	1200kgs
After Warranty Service	Video technical support
Certification	CE
Type	Die-cutting Machine
Applicable Industries	Manufacturing Plant
Local Service Location	Canada
Showroom Location	None
Condition	New
Computerized	Yes
Production Capacity	120 m/min
Marketing Type	Hot Product 2019
Key Selling Points	Long Service Life
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Pressure vessel
PLC Brand	Schneider
Voltage	380V/220V/415V/110V
Dimension(LWH)	1.81.11.8m
Max. workable width	320 mm

Packaging & Delivery

Selling Units:: Set

Lead Time:

Quantity(Set)	1	>1
Est. Time(days)	30	To be negotiated

Product Description

DES320D 2 Two Double Side Station Unit Blank Label Rotary Die Cutting and Slitting Machine

DES320D slitting machine with 2 unit rotary die-cutting function is a new product, it equipped with high accurate rotary die-cutting system. This machine is suitable for blank adhesive labels. Die-cutting, slitting can be finished in one process. It has the function of automatic meter counting, automatic stopping, web guiding by photoelectric eye. The machine has the characteristics of compact structure, fast speed, high efficiency, easy operation, accurate slitting, steady running etc.

Feature&Configuration:
1.Two Die Cutting Station + One Slitting Station.
2. With 1pc 3’’ unwinding shaft, 2pcs 1.5’’ rewinding shafts + 1pc 3” rewinding air shaft
3. With meter/number counter.
4. With Two Photoelectric Eyes---Web Guide System
5. With 8 set rotary slitting knife.
6. 1 Set magnetic brake & clutach.
7. 1 Set Blower. Machine has blower fan to blow away the trimmed sides.
8. With Turret Rewind

9. 2 Set Automatic Constant Tension Controller

-1 Set Automatic Constant Tension Controller for unwinder.
-1 Set Automatic Constant Tension Controller For rewinder.

10. 1pc Synchronous Motor
11. Frequency Converter

Video

Product Paramenters

Machine Model	DES320D	DES550D
Slitting Speed	120m/min	120 m/min
Die Cutting Speed	120m/min	120 m/min
Max. Web Width	320mm	550mm
Max. Unwinding Diameter	700mm	700mm
Max. Rewinding diameter for big roll	600mm	600mm
Max. Rewinding diameter for small roll	200mm	200mm
Length of Die Cutting	178-470 mm	178-470 mm
Dimensions	200011001800 mm	210015001520 mm
Main motor	3 KW	3 KW
Voltage	220V/380V	220V/380V
Min. Slitting width	15mm	15mm
Machine weight	2000 kgs	2500 kgs

Details Images

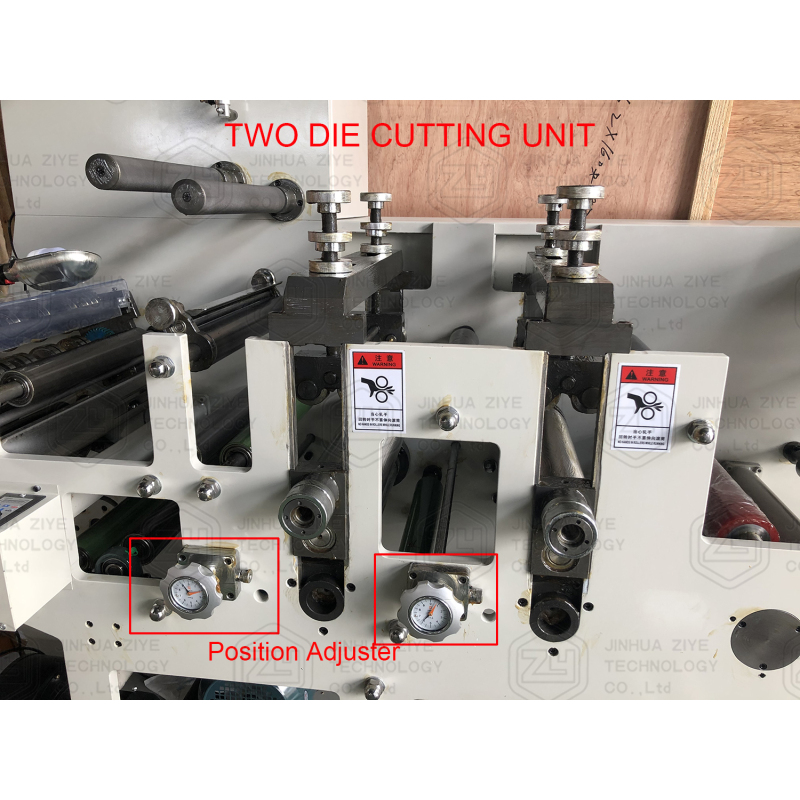

2 Unit Die Cutting Unit

Magnetic Cylinder & Flexible Die

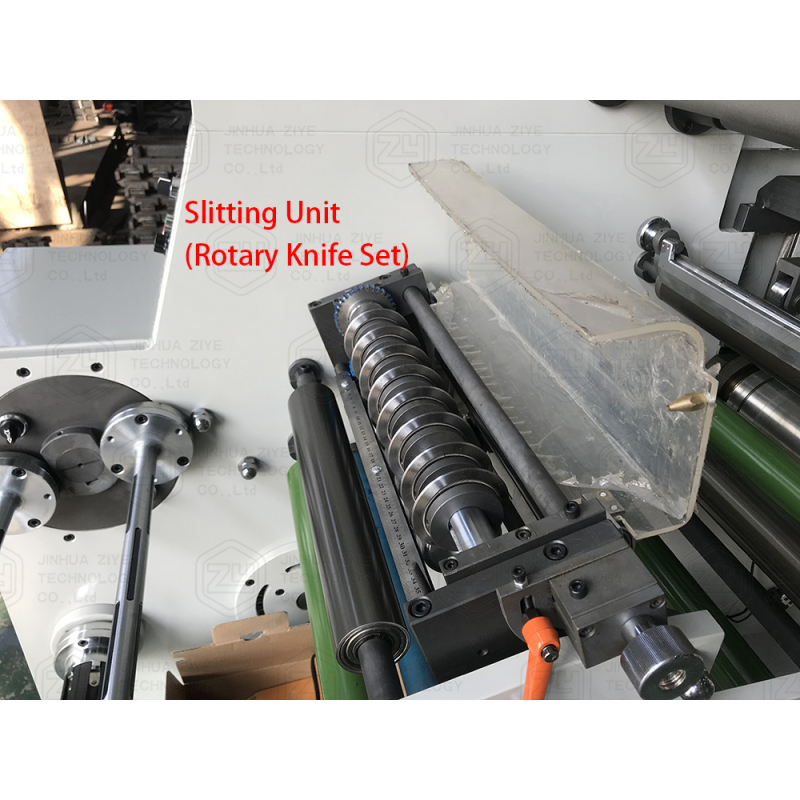

Slitting Unit

1-Set Slitting Unit comes with 8 Sets Rotary Knives in Standard Configuration.

Rotary Knife Set

Unwind Unit

With 1 pc 3" Air Expanding Shaft.

Can accept max diameter 600mm material jumbo roll. (can be customized)

Rewind Unit

With 2pcs 1.5” Air shaft, (Turret Rewind), can accept 200mm diameter roll.

With1 pc 3" Air Expanding Shaft., can accept 500mm diameter roll.

Magnetic Brake and Clutch

With One 25 N.M Magnetic Brake, One 50 N.M Magnetic Clutch

Machine Drive By Synchronous Belt. Low Noise and Stable Operation

Auto Constant Tension Controller

With 2 Set ZXT Auto Constant Tension Controller For Unwind and Rewind

Blower Fan

Machine Has Blower Fan To Blow Away The Trimmed Sides to collect waste.

Counter

Machine can count with meter or quantity.
