FPL800L-S High Speed Paper Straw Roll To Roll Slitting Cutting Slitter And Rewinder Machine
≥1 Set
$13,000.00
- Item No.FPL800L-SMOQ1 Set
Choice
Color classification / size
Customization:
Online customization Customise Now
Customized logo (Min. Order: 1 Set)
Customized packaging (Min. Order: 1 Set)
Quantity:
From $13000.00 / Set
$13,000.00
You save $ -13,000.00
Trade Assuranceprotects your orders
On-time Dispatch Guarantee
Refund Policy
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
Product Description

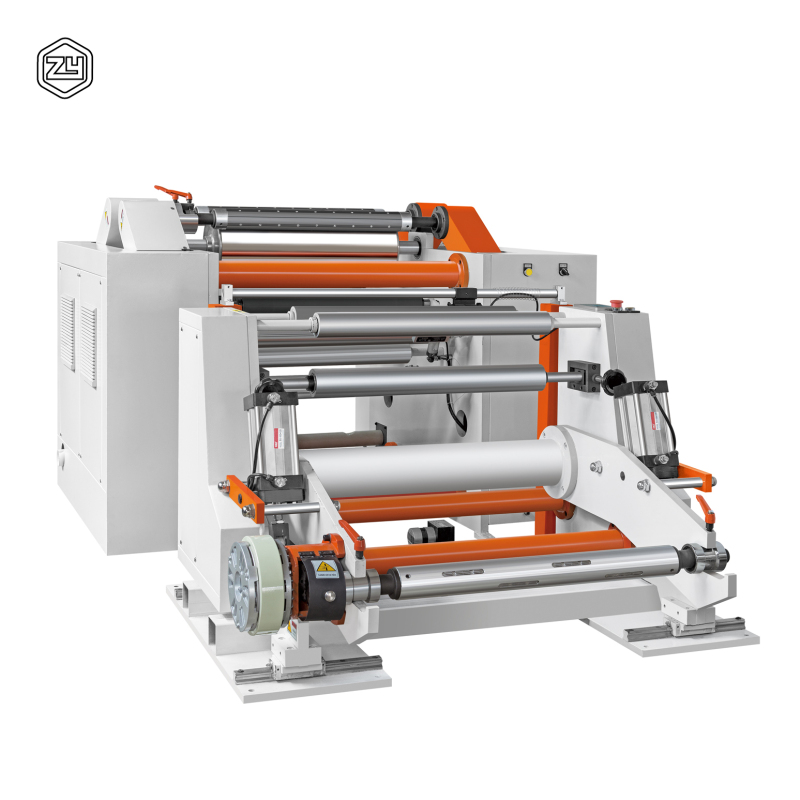

FPL800L-SHigh Speed Paper Straw Roll To Roll Slitting Cutting Slitter And Rewinder Machine
Our Company in digestion and absorption of advanced models based on the combination of domestic raw material characteristics, operating the body curve and operating habits designed for mid-range users FPL-series compact Slitter. The machine uses the most advanced drive technology and control technology, optimizing the coordination of machine, electricity, light, gas and liquid configuration, taking into account the ease of operation, stability, economy and high efficiency. 1.Unwinding Diameter is 1000mm
2.Frequency Drive, PLC Centralized Control + Touch Screen
3.Auto Taper Tension Control (The taper control can make the inner layer of the coiling film tighter and the outer layer looser, so that there is no slip between the layers of the coiling film and prevent the material from being too tightly wound and the coiling material from skewing.)
4.Pneumatic System Automatically Uploader Lifter (Max load is 1000kgs)
5.Material Platform
6.Web Guide System, Single Photocell Detector
7.All Bearing Use Japan NSK
8.Air shaft rewinding and unwinding
Feature:
2.Frequency Drive, PLC Centralized Control + Touch Screen
3.Auto Taper Tension Control (The taper control can make the inner layer of the coiling film tighter and the outer layer looser, so that there is no slip between the layers of the coiling film and prevent the material from being too tightly wound and the coiling material from skewing.)
4.Pneumatic System Automatically Uploader Lifter (Max load is 1000kgs)
5.Material Platform
6.Web Guide System, Single Photocell Detector
7.All Bearing Use Japan NSK
8.Air shaft rewinding and unwinding

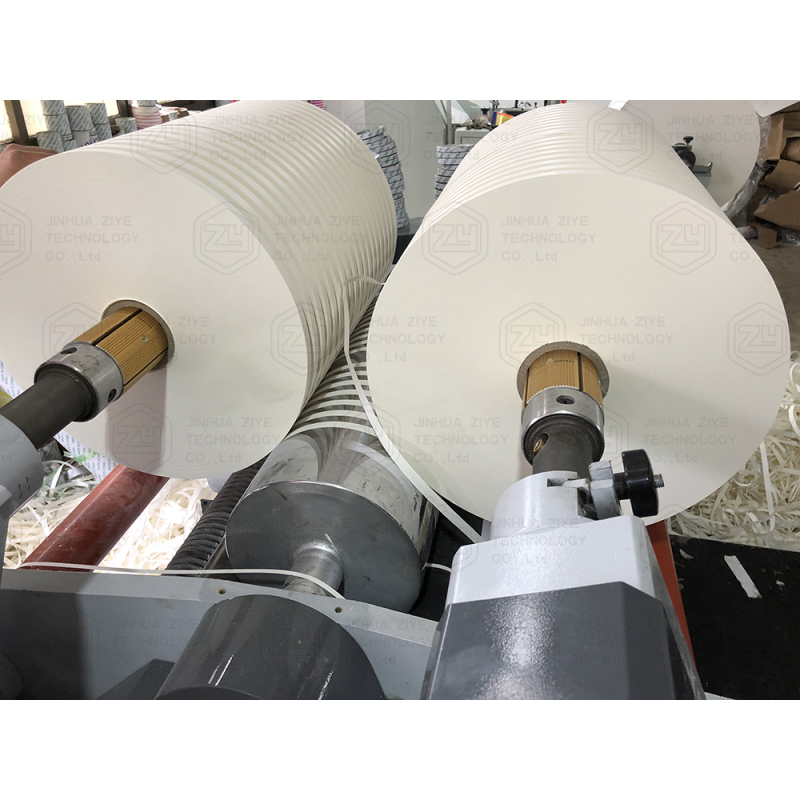

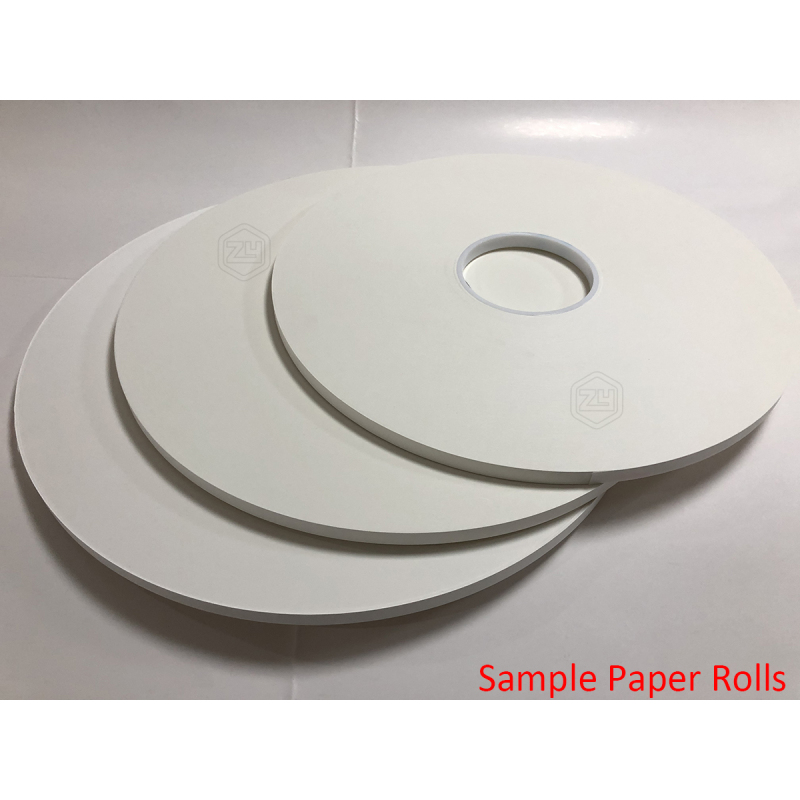

Samples
Product Paramenters
Machine Model | FPL600L-S | FPL800L-S |
Slitting Speed | 5-200m/min | 5-200m/min |
Max. Web Width | 600mm | 800mm |
Max. Unwinding Diameter | 1000mm (can be customized) | 1000mm (can be customized) |
Max. Rewinding Diameter | 550mm | 550mm |
Slitting Precision | ±0.15mm | ±0.15mm |
Dimensions | 2500*1000*1400mm | 2500*1200*1400mm |
Main Motor | 4 KW | 7 KW |
Voltage | 220V/380V | 220V/380V |
Min. Slitting Width | ＞12mm | ＞12mm |
Machine Weight | 2000kg | 2500kg |
Details Images
Slitting Unit
1-Set Slitting Unit

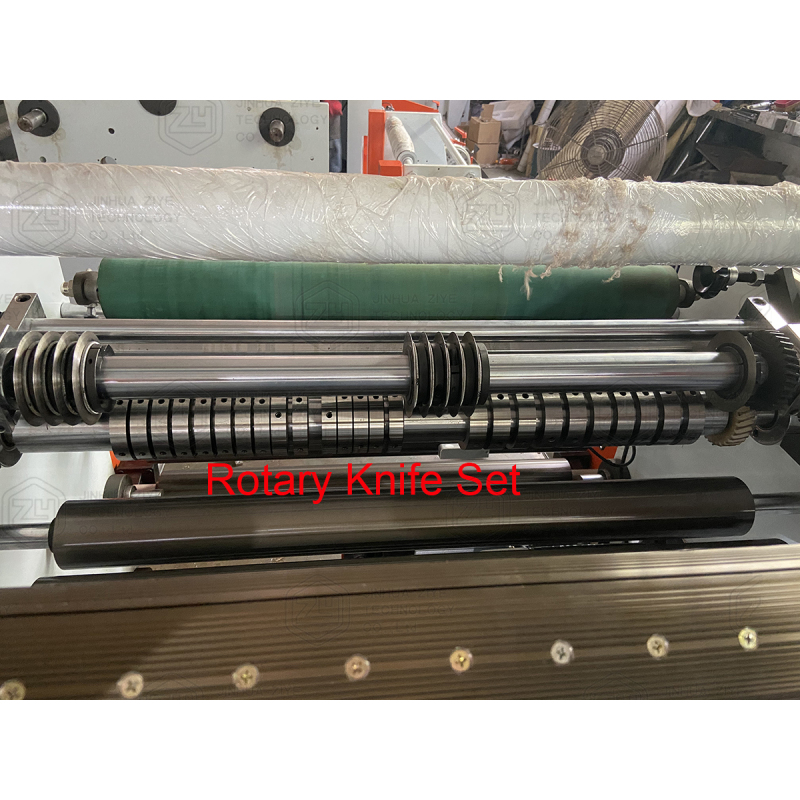

Knife Set
Include Upper Knife Set and Female Knife Set

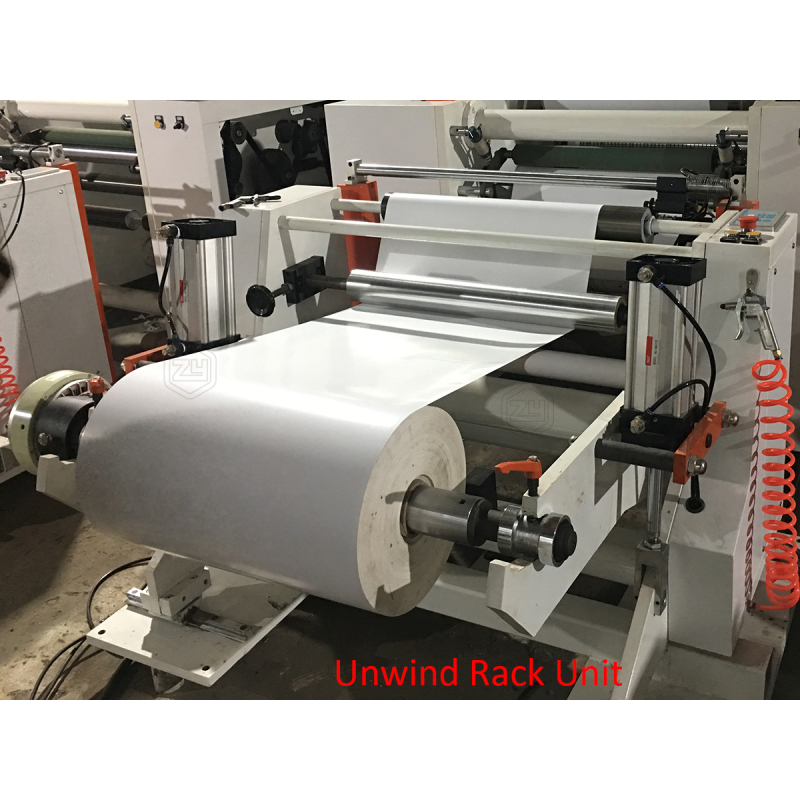

Unwind Unit
With 1 pc 3" Air Expanding Shaft.
Can accept max diameter 1000mm material jumbo roll. (can be customized)
Rewind Unit
With2 pc 3" Air Expanding Shaft., can accept 550mm diameter roll.Surface Rewind (Most important feature in this machine)
Web Guide System
Control Web Go Straight.
Blower Fan
Machine Has Blower Fan To Blow Away The Trimmed Sides to collect waste.
Magnetic Brake
Control Unwind's Tension
Magnetic Clutch
Control Rewind's Tension
Controller Panel
PLC
Convenient for operation
Company Profile
Ziye professionally research and manufacture flexo printing machine, label die cutting machine, slitting machine and
some related series products, we pay attention to talents and the technical innovation, insist on “technical innovation, national brand’ as development strategy, to make company as the leader in after printing machinery line.
Sincerity, quality,service is our operation principle, to be brave, aggressive, pragmatic, efficient is our company spirit. We
research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!
some related series products, we pay attention to talents and the technical innovation, insist on “technical innovation, national brand’ as development strategy, to make company as the leader in after printing machinery line.
Sincerity, quality,service is our operation principle, to be brave, aggressive, pragmatic, efficient is our company spirit. We
research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!
Interior:Wraping Film to keep dry and prevent from rusty
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
Machine will be covered by Oil to prevent Rusty in delivery
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
Machine will be covered by Oil to prevent Rusty in delivery
