Product Description
VR

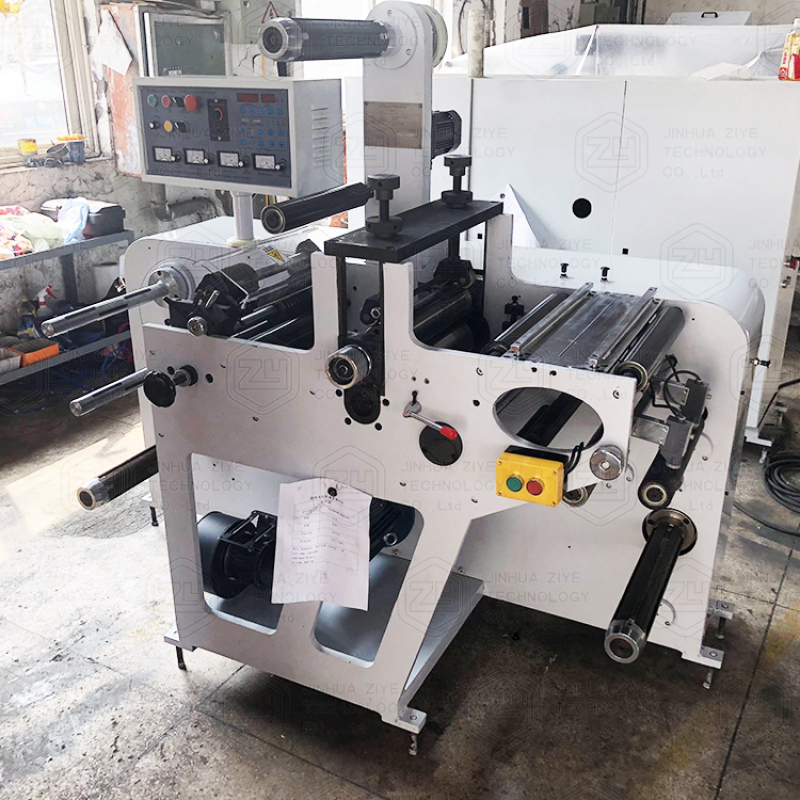

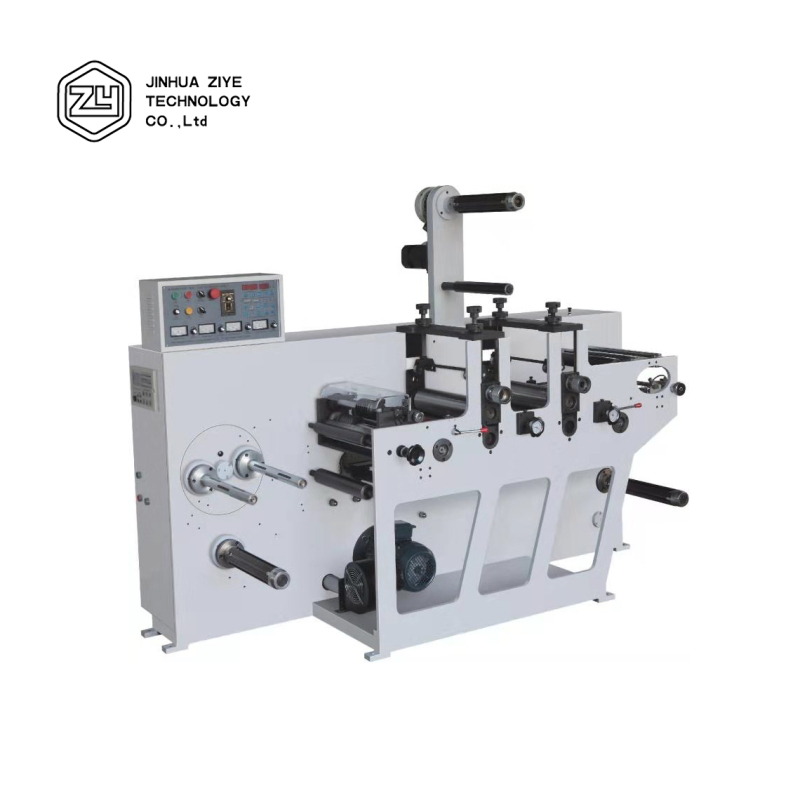

DES320TD Semi Automatic Roll To Roll Self-Adhesive Sticker Label Flexo Die Cutting Machine


DES320T slitting machine with rotary die-cutting function and turret rewind is a new product, it equipped with high accurate rotary die-cutting system. This machine is suitable for blank adhesive labels. Die-cutting, slitting can be finished in one process. It has the function of automatic meter counting, automatic stopping, web guiding by photoelectric eye. The machine has the characteristics of compact structure, fast speed, high efficiency, easy operation, accurate slitting, steady running etc.

Feature&Configuration:
1. One Die Cutting Station + One Slitting Station.2. With 1pc 3’’ Unwinding Shaft, 2pcs 1.5’’ Rewinding Shafts + 1pc 3” Rewinding Air Shaft(turret Rewind, With Airtac Pneumatic Parts)3. With Meter/number Counter.4. With Two Photoelectric Eyes---web Guide System5. With 8 Pcs Rotary Slitting Knife.6. 1pc Magnetic Brake, 3pcs Magnetic Clutch.7. 1pc Blower. Machine Has Blower Fan To Blow Away The Trimmed Sides.8. 1pc Auto-counter9. 1pc Main Motor10. 1pc Synchronous Motor11. Frequency Converter12. With Turret Rewind

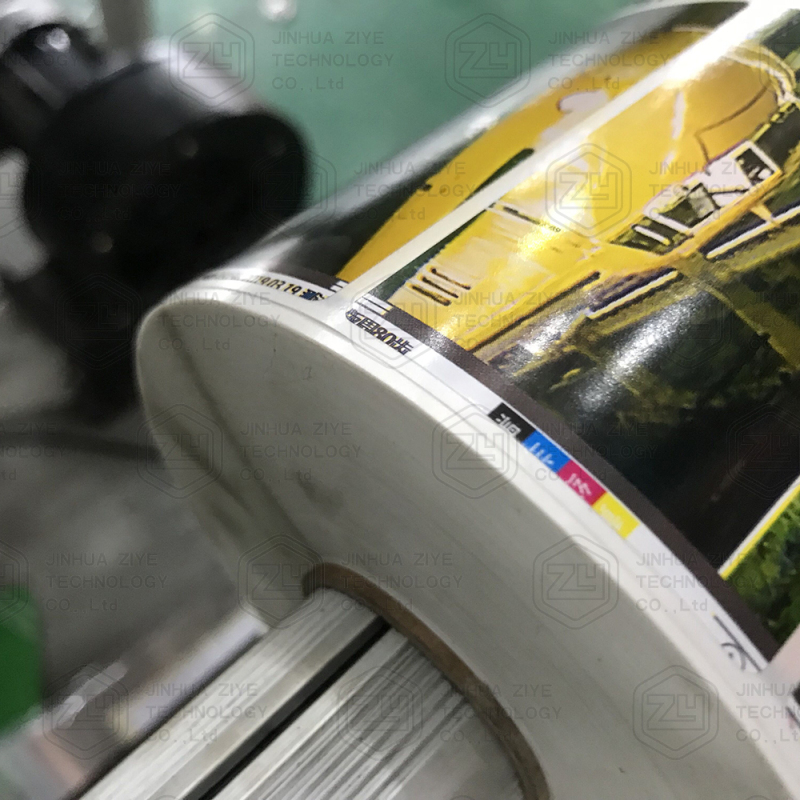

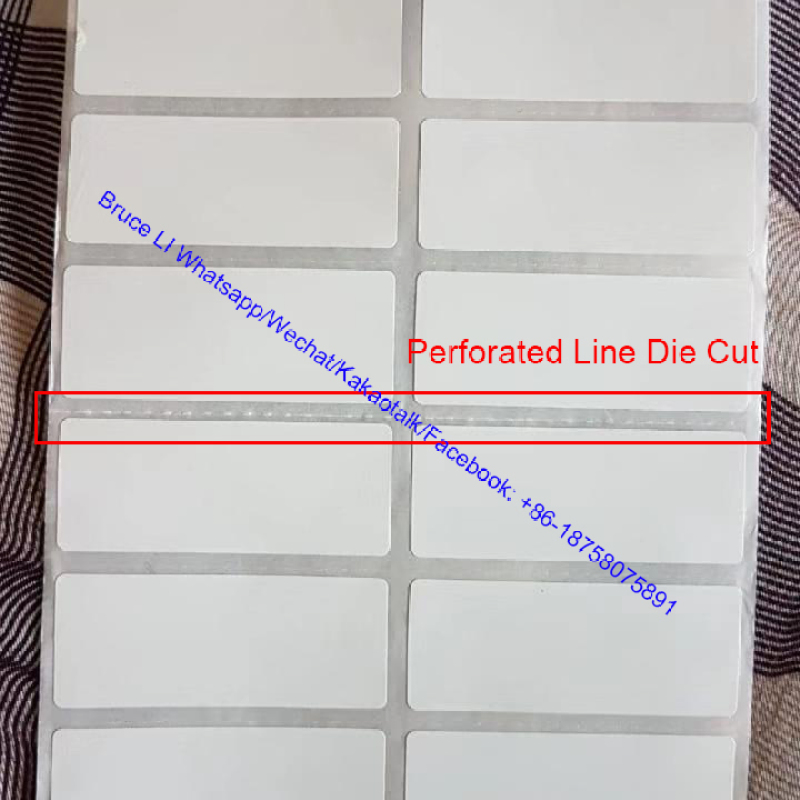

Samples
Product Paramenters
Machine Model
DES320TD
Slitting Speed
120m/min
Die Cutting Speed
120m/min
Max width of roller
320 mm
Max Diameter of Unwinding
550 mm
Max Diameter of Down 3” Rewinding
500 mm
Max Diameter of Up 1.5” Rewinding
300 mm
Length of Die Cutting
178-470 mm
Min Slit Width
15 mm
Main power
4 kw
Overall Size
2200*1000*1600mm
Weight
1200 kg
Details Images

Slitting Unit

1-Set Slitting Unit comes with 8 Sets Rotary Knives in Standard Configuration.

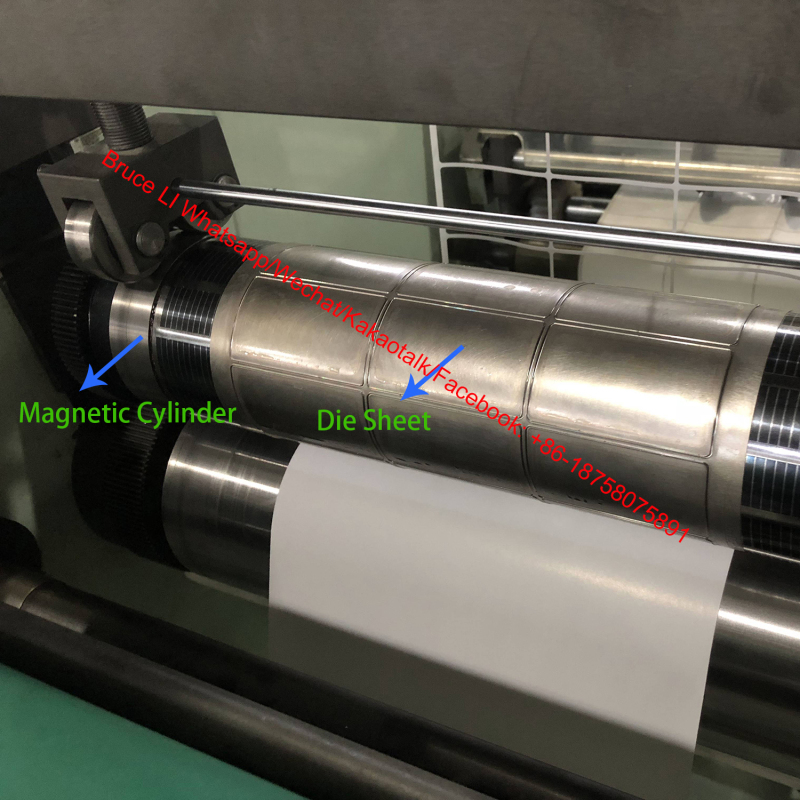

Die Cutting Unit

Cooperate With Magnetic Cylinder and Flexible Dies

Unwind Unit

With 1 pc 3" Air Expanding Shaft.
Can accept max diameter 550mm material jumbo roll. (can be customized)

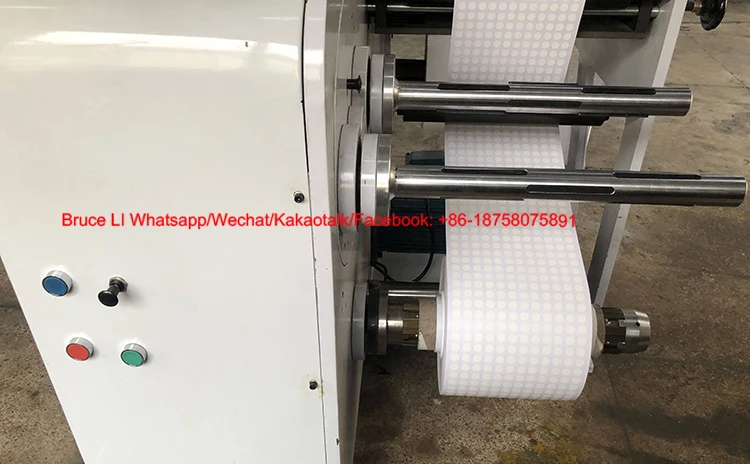

Rewind Unit

With 2pcs 1.5” Air shaft, (Turret Rewind), can accept 300mm diameter roll.
With 1 pc 3" Air Expanding Shaft., can accept 500mm diameter roll.

Magnetic Brake and Clutch

With One 25 N.M Magnetic Brake, Two 25 N.M Magnetic Clutch
Machine Drive By Synchronous Belt. Low Noise and Stable Operation

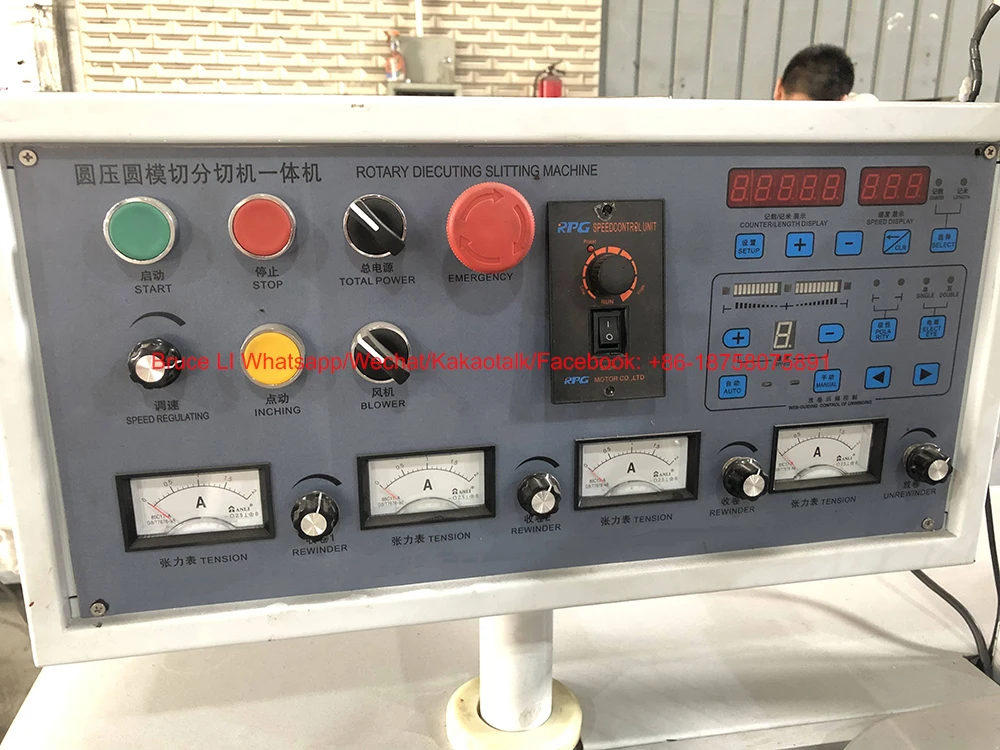

Controller Panel

Speed Controller
Tension Controller
Counter...

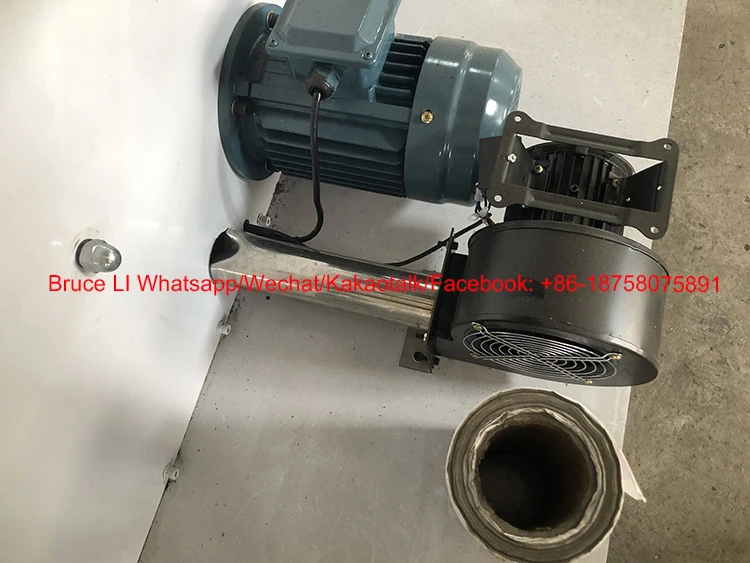

Blower Fan

Machine Has Blower Fan To Blow Away The Trimmed Sides to collect waste.

Counter

Machine can count with meter or quantity.
Company Profile
Jinhua Ziye
professionally research and manufacture flexo printing machine, label die cutting machine, label slitting machine and
some related series products, we pay attention to talents and the technical innovation, insist on “technical innovation, national brand’ as development strategy, to make company as the leader in after printing machinery line.
Sincerity, quality,service is our operation principle, to be brave, aggressive, pragmatic, efficient is our company spirit. We research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!

Contact Information

Contact: Bruce Li
Whatsapp/Wechat/Skype/Facebook: +86-18758075891
EMAIL: [email protected]
Website: https://ziye.en.alibaba.com/
Why Choose Us
Professional Team
For slitting machine, we can provide you in 5-20days.
Factory Monthly Output is 50 sets.
Because we have professional production team over 50 persons. Now let me introduce our Professional Team to you:

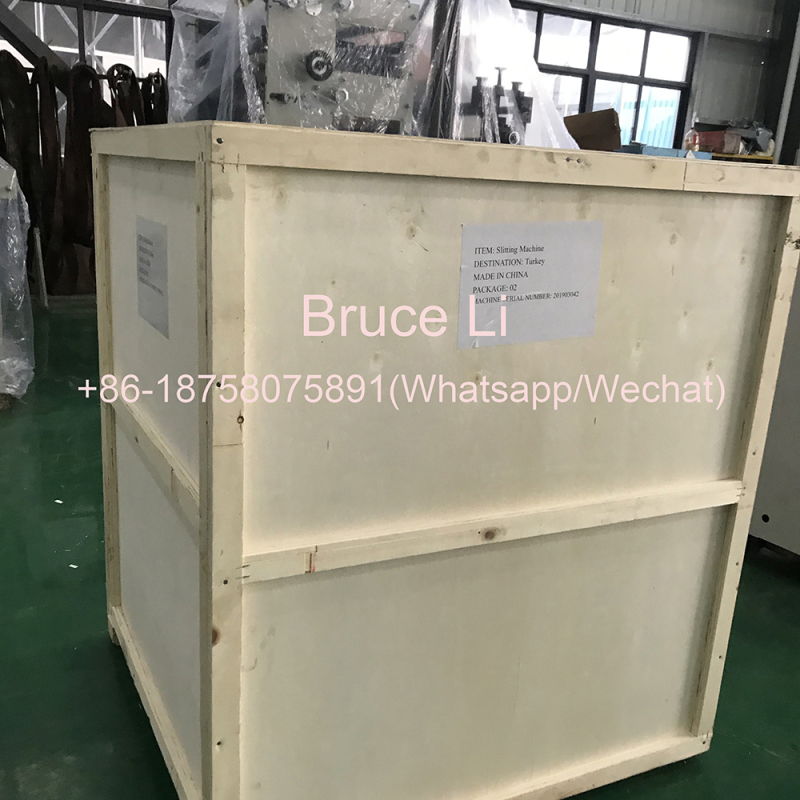

Product packaging
We promise machine will be packed with:
Interior: Wraping Film to keep dry and prevent from rusty
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
Machine will be covered by Oil to prevent Rusty in delivery
