professionally research and manufacture flexo printing machine, label die cutting machine, label slitting machine and
some related series products, we pay attention to talents and the technical innovation, insist on “technical innovation, national
brand’ as development strategy, to make company as the leader in after printing machinery line.
Sincerity, quality,service is our operation principle, to be brave, aggressive, pragmatic, efficient is our company spirit. We
research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!
DES420T1 Fully Automatic Blank Label Rotary Die Cutter with Slitter Slitting Rewinder 120 M/min Production Capacity 120m/min
1-3 Set
$7,500.00
≥ 4 Set
$7,200.00
- Item No. 202208133d318MOQ 1 Set
Choice
Color classification / size
Customization:
Online customization Customise Now
Customized logo (Min. Order: 1 Set)
Customized packaging (Min. Order: 1 Set)
Quantity:
From $ 7500.007200.00 / Set
$ 7,500.00
You save $ -7,500.00
Trade Assurance protects your orders
On-time Dispatch Guarantee
Refund Policy
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
VR
Product Description

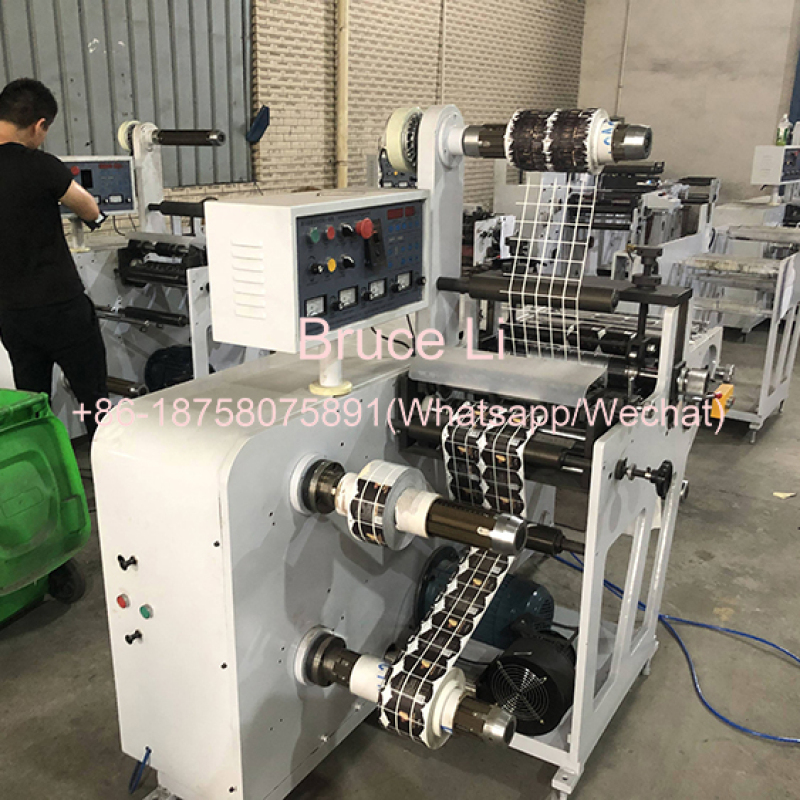

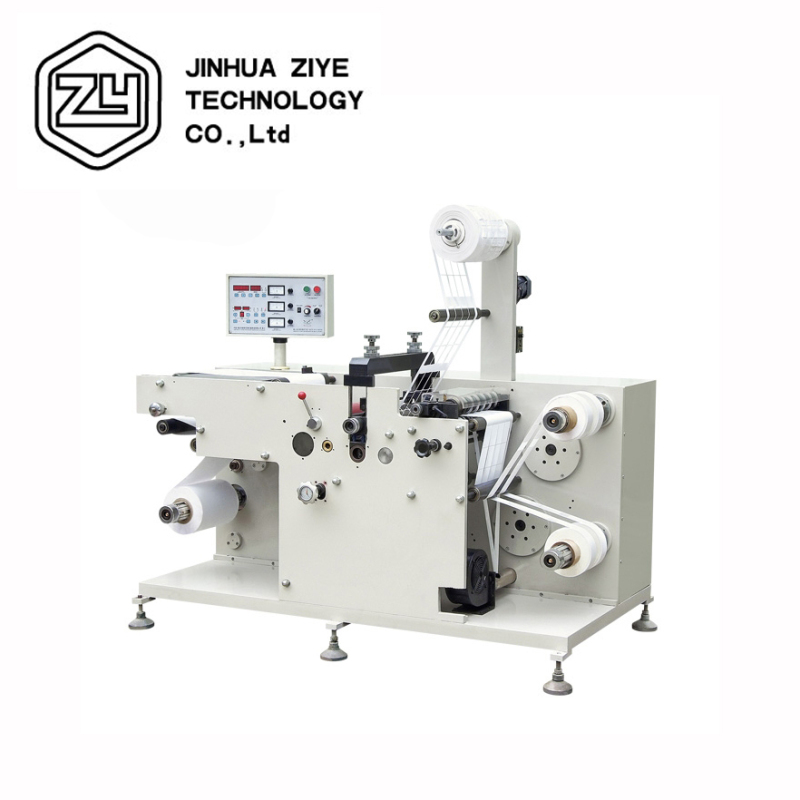

DES420T1 Fully Automatic Blank Label Rotary Die Cutter With Slitter
DES420T1 slitting machine with rotary die-cutting function is a new product, it equipped with high accurate rotary die-cutting
system. This machine is suitable for blank adhesive labels. Die-cutting, slitting can be finished in one process. It has the
function of automatic meter counting, automatic stopping, web guiding by photoelectric eye. The machine has the characteristics of
compact structure, fast speed, high efficiency, easy operation, accurate slitting, steady running etc.
2. With 1pc 3’’ unwinding shaft, 2pc 3” rewinding air shaft
3. With meter/number counter.
4. With two photoelectric eyes---web guide system
5. With 8 pcs rotary slitting knife.
6. 1pc magnetic brake, 2pcs magnetic clutch.
7. 1pc Blower. Machine has blower fan to blow away the trimmed sides.
8. 1pc Auto-counter
9. 1pc Main Motor
10. 1pc Synchronous Motor
11. Frequency Converter
system. This machine is suitable for blank adhesive labels. Die-cutting, slitting can be finished in one process. It has the
function of automatic meter counting, automatic stopping, web guiding by photoelectric eye. The machine has the characteristics of
compact structure, fast speed, high efficiency, easy operation, accurate slitting, steady running etc.
Feature&Configuration:
1. One die cutting station + one slitting station.2. With 1pc 3’’ unwinding shaft, 2pc 3” rewinding air shaft
3. With meter/number counter.
4. With two photoelectric eyes---web guide system
5. With 8 pcs rotary slitting knife.
6. 1pc magnetic brake, 2pcs magnetic clutch.
7. 1pc Blower. Machine has blower fan to blow away the trimmed sides.
8. 1pc Auto-counter
9. 1pc Main Motor
10. 1pc Synchronous Motor
11. Frequency Converter

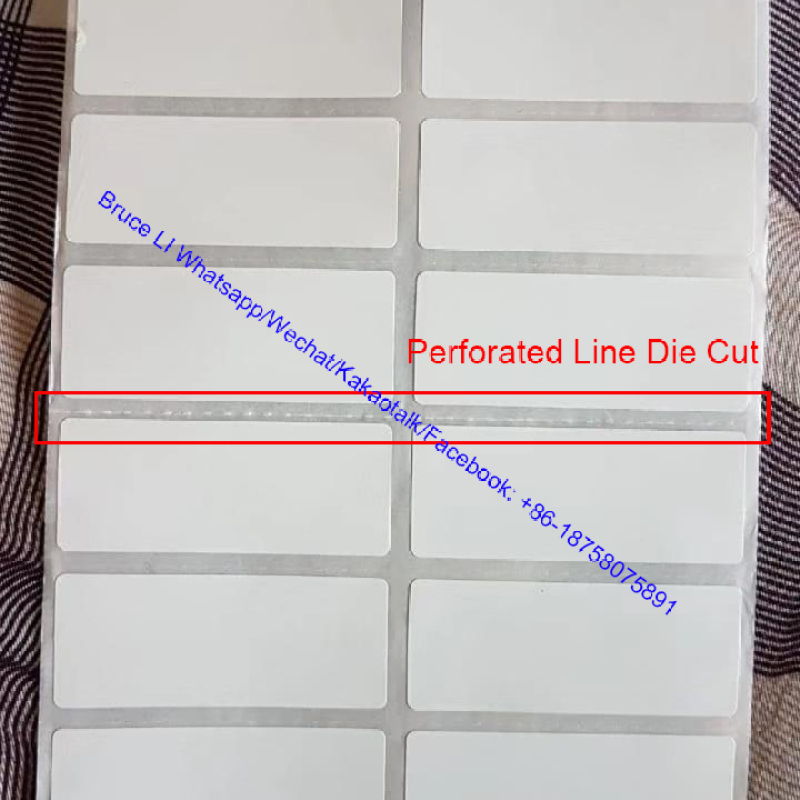

Samples
Product Paramenters
Machine Model | DES320T1 | DES420T1 |
Slitting Speed | 120m/min | 120m/min |
Die Cutting Speed | 120m/min | 120m/min |
Max. Web Width | 320mm | 420mm |
Max. Unwinding Diameter | 550mm | 550mm |
Max. Rewinding Diameter | 550mm | 550mm |
Length of Die Cutting | 178-470 mm | 178-470 mm |
Dimensions | 1700*1000*1600mm | 1700*1100*1600mm |
Main Power | 3 KW | 3 KW |
Voltage | 220V/380V | 220V/380V |
Min. Slitting width | 15mm | 15mm |
Machine weight | 700 kgs | 800 kgs |
Details Images

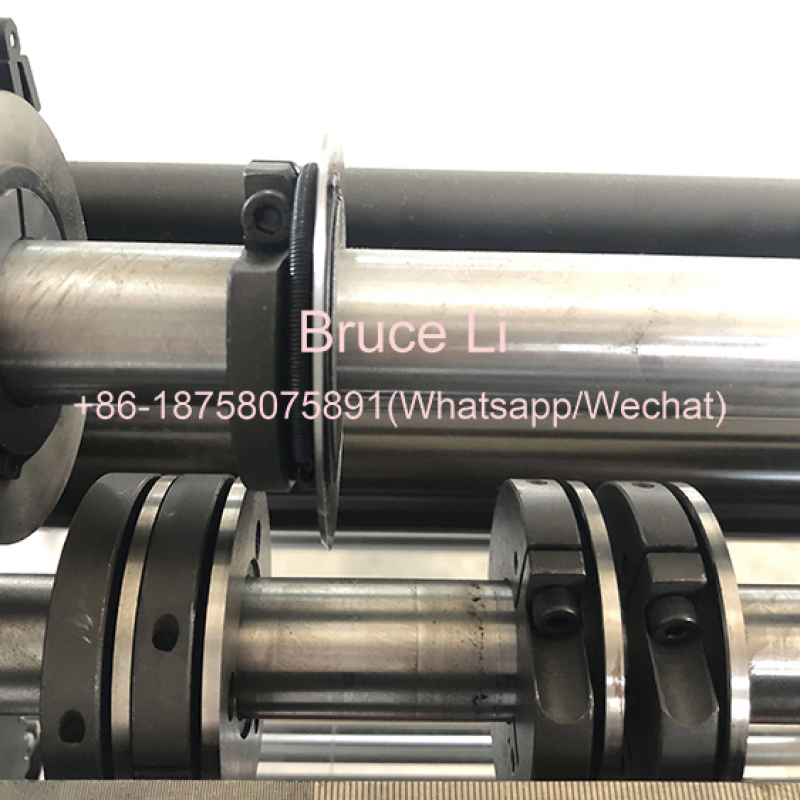

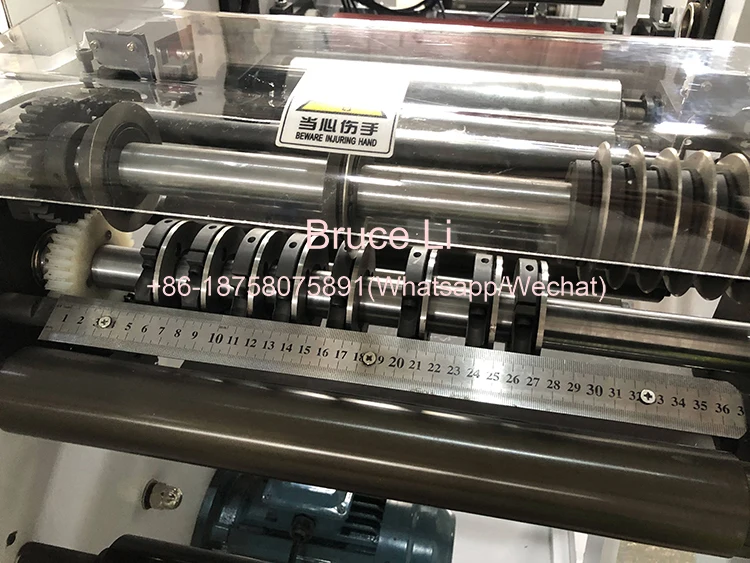

Slitting Unit
1-Set Slitting Unit comes with 8 Sets Rotary Knives in Standard Configuration.

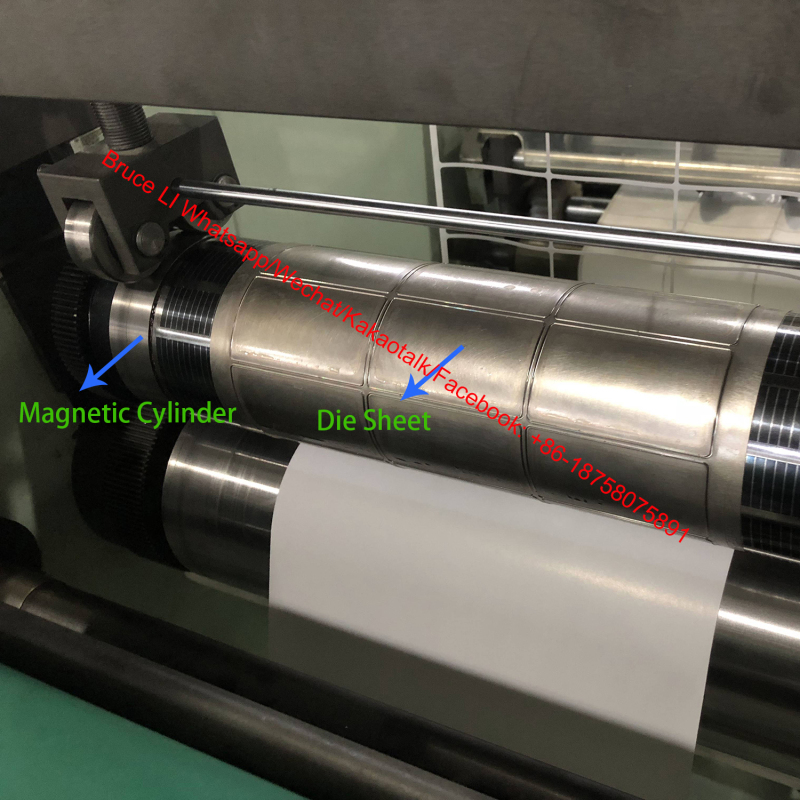

Die Cutting Unit
Cooperate With Magnetic Cylinder and Flexible Dies
Unwind Unit
With 1 pc 3" Air Expanding Shaft.
Can accept max diameter 550mm material jumbo roll. (can be customized)

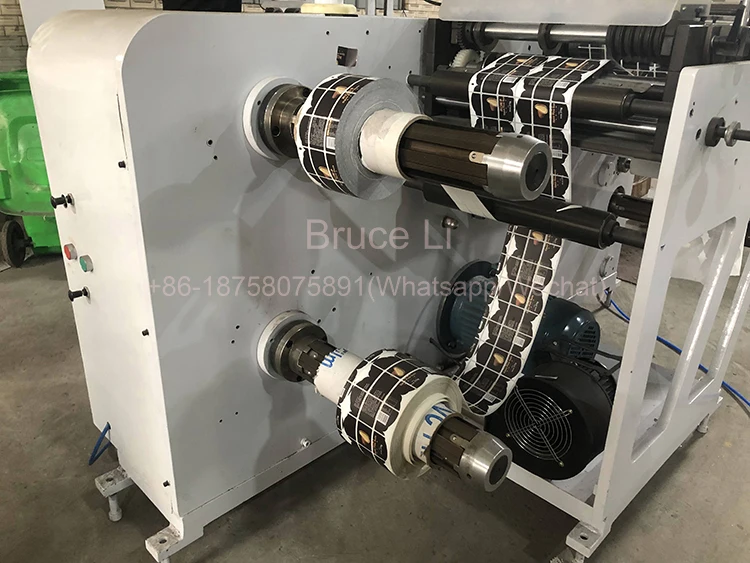

Rewind Unit
With 2pcs 3” Air shaft, (Turret Rewind), can accept 550mm diameter roll.

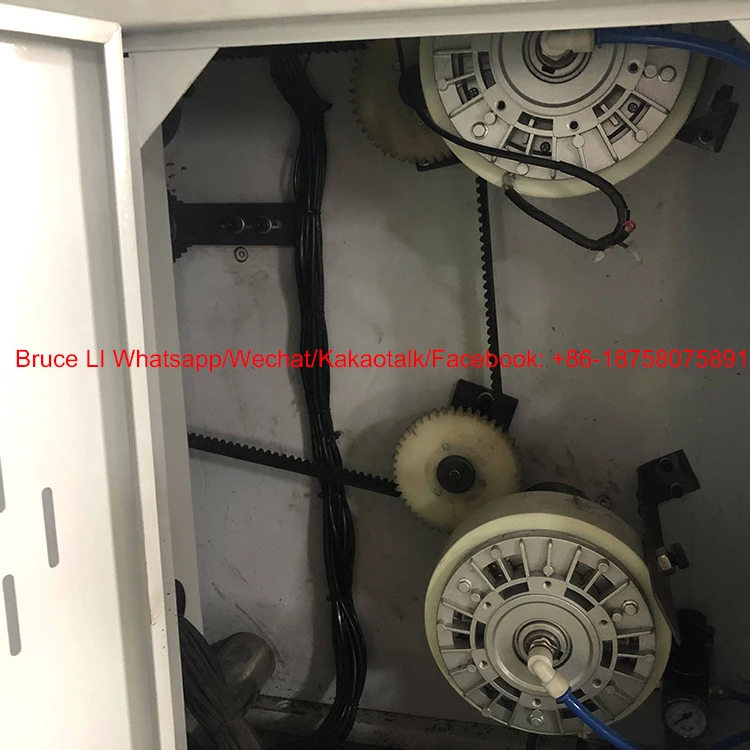

Magnetic Brake and Clutch
With One 25 N.M Magnetic Brake, One 50 N.M Magnetic Clutch
Machine Drive By Synchronous Belt. Low Noise and Stable Operation
Controller Panel
With Tension Controller, Speed Controller, Power Button, Counter...
Blower Fan
Machine Has Blower Fan To Blow Away The Trimmed Sides to collect waste.

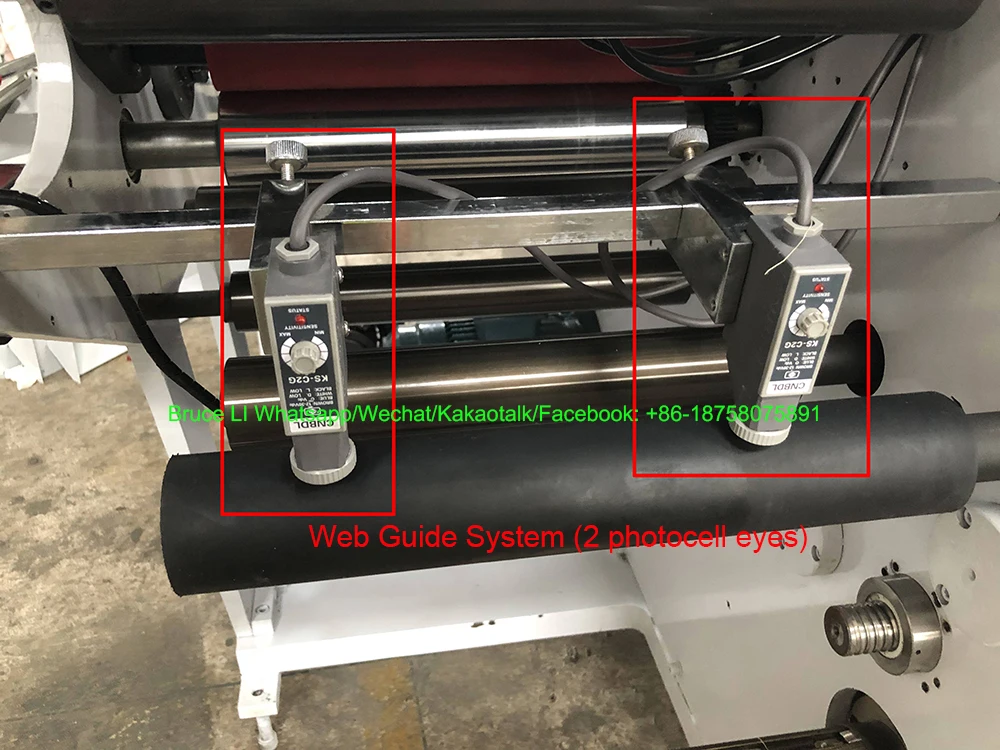

Web Guide System
Two Photocell Sensor Control Web Go Straight.
Company Profile
Jinhua Ziye
Why Choose Us
Professional Team
For slitting machine, we can provide you in 5-20days.
Factory Monthly Output is 50 sets.
Because we have professional production team over 50 persons. Now let me introduce our Professional Team to you:
Factory Monthly Output is 50 sets.
Because we have professional production team over 50 persons. Now let me introduce our Professional Team to you:
Product packaging
Title goes here.
Interior: Wraping Film to keep dry and prevent from rusty
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
Machine will be covered by Oil to prevent Rusty in delivery
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
Machine will be covered by Oil to prevent Rusty in delivery
