FPL1300L-S High Speed PET PVC Plastic Stretch Film Slitting And Rewinding Machine
1-1000 Set
$19,000.00
≥1001 Set
$17,000.00
- Customized logo (Min. Order: 1 Set)
- Customized packaging (Min. Order: 1 Set)
description
Product Description

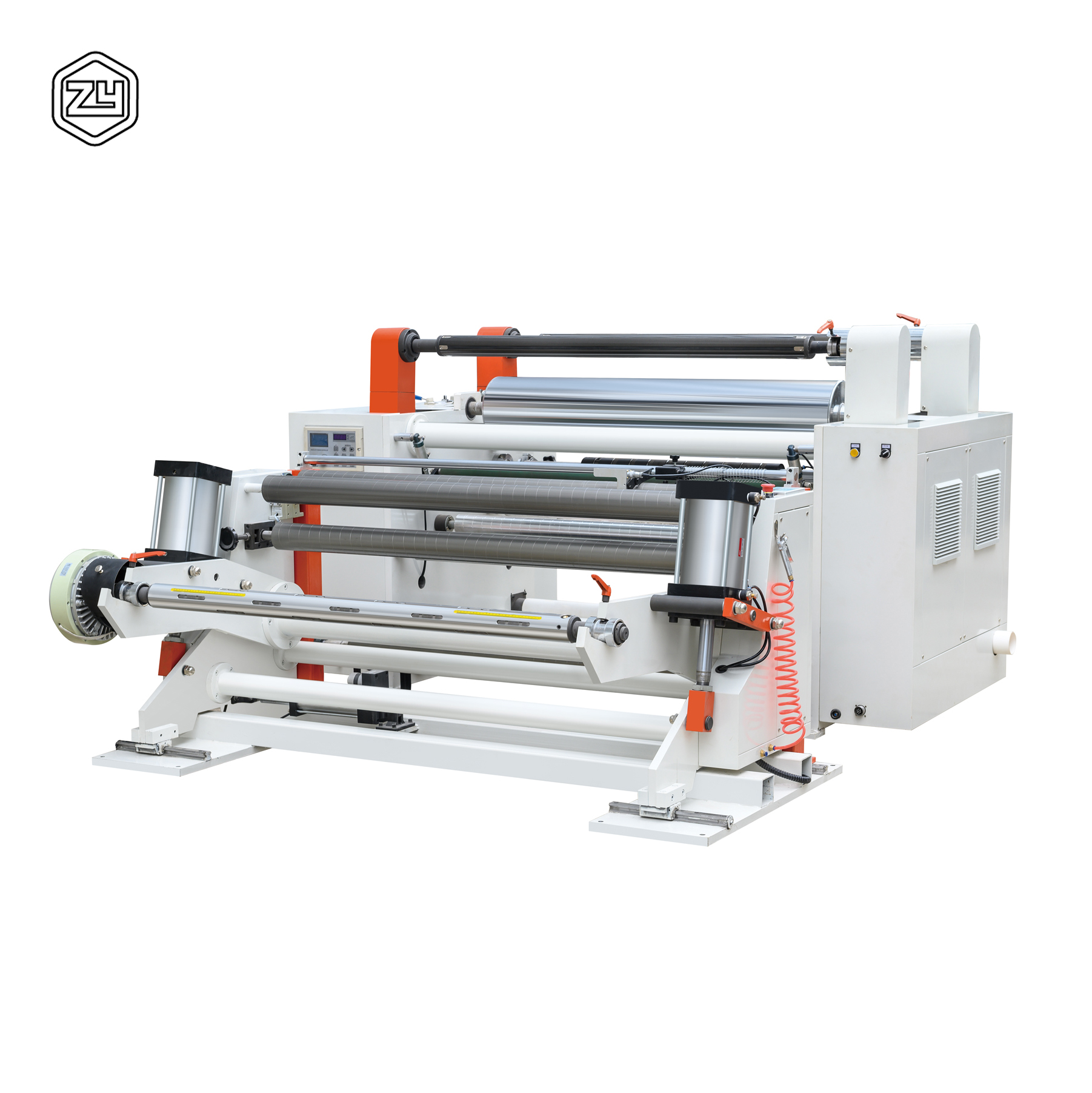

FPL1300L-S High Speed PET PVC Plastic Stretch Film Slitting And Rewinding Machine
Our Company in digestion and absorption of advanced models based on the combination of domestic raw material characteristics, operating the body curve and operating habits designed for mid-range users FPL-series compact Slitter. The machine uses the most advanced drive technology and control technology, optimizing the coordination of machine, electricity, light, gas and liquid configuration, taking into account the ease of operation, stability, economy and high efficiency.
2.Frequency Drive, PLC Centralized Control + Touch Screen
3.Auto Taper Tension Control (The taper control can make the inner layer of the coiling film tighter and the outer layer looser, so that there is no slip between the layers of the coiling film and prevent the material from being too tightly wound and the coiling material from skewing.)
4.Pneumatic System Automatically Uploader Lifter (Max load is 1000kgs)
5.Material Platform
6.Web Guide System, Single Photocell Detector
7.All Bearing Use Japan NSK
8.Air shaft rewinding and unwinding
Feature:
1.Unwinding Diameter is 1000mm
2.Frequency Drive, PLC Centralized Control + Touch Screen
3.Auto Taper Tension Control (The taper control can make the inner layer of the coiling film tighter and the outer layer looser, so that there is no slip between the layers of the coiling film and prevent the material from being too tightly wound and the coiling material from skewing.)
4.Pneumatic System Automatically Uploader Lifter (Max load is 1000kgs)
5.Material Platform
6.Web Guide System, Single Photocell Detector
7.All Bearing Use Japan NSK
8.Air shaft rewinding and unwinding
Samples
Product Paramenters
Machine Model | FPL1100L-S | FPL1300L-S |
Slitting Speed | 10-200m/min | 10-200m/min |
Max. Web Width | 1100mm | 1300mm |
Max. Unwinding Diameter | 1000mm (can be customized) | 1000mm (can be customized) |
Max. Rewinding Diameter | 550mm | 550mm |
Slitting Precision | ±0.2mm | ±0.2mm |
Dimensions | 2800*2500*1400mm | 2800*2500*1400mm |
Main Motor | 7.5 KW | 7.5 KW |
Voltage | 380V | 380V |
Min. Slitting Width | ＞25mm | ＞25mm |
Machine Weight | 2900kg | 3000kg |
Details Images
Slitting Unit
1-Set Slitting Unit
Knife Set
Include Upper Knife Set and Female Knife Set
Unwind Unit
With 1 pc 3" Air Expanding Shaft.
Can accept max diameter 1000mm material jumbo roll. (can be customized)
Rewind Unit
With 2 pc 3" Air Expanding Shaft., can accept 550mm diameter roll.Surface Rewind (Most important feature in this machine)
Web Guide System
Control Web Go Straight.
Blower Fan
Machine Has Blower Fan To Blow Away The Trimmed Sides to collect waste.
Magnetic Brake
Control Unwind's Tension
Magnetic Clutch
Control Rewind's Tension
Controller Panel
PLC
Convenient for operation
