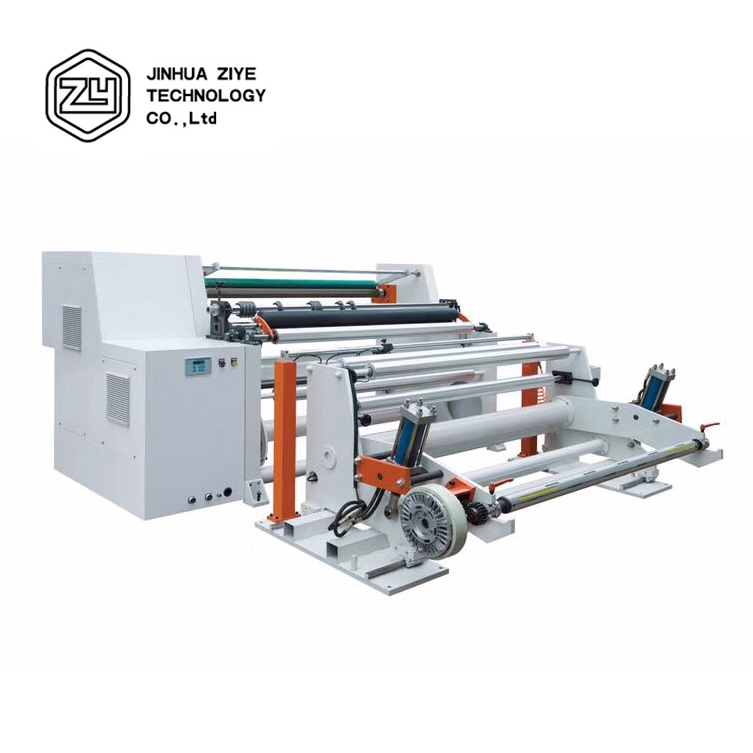

FPL2100L-H Fully Automatic High Speed Paper Roll Cutting and Slitting Machine

≥1 Set

$25,000.00

  • Item No. FPL2100L-H
    MOQ 1 Set / Set
  • Customized logo (Min. Order: 1 Set)
  • Customized packaging (Min. Order: 1 Set)
description

Product Description



FPL2100L-H Fully Automatic High Speed Paper Roll Cutting and Slitting Machine
Our Company in digestion and absorption of advanced models based on the combination of domestic raw material characteristics, operating the body curve and operating habits designed for mid-range users D-series compact Slitter. The machine uses the most advanced drive technology and control technology, optimizing the coordination of machine, electricity, light, gas and liquid configuration, taking into account the ease of operation, stability, economy and high efficiency.

Main Configuration:

1.Unwinding Diameter 1200mm, Rewinding Diameter 600mm
2.Hydraulic Up Lifter, For big roller, Max Weight is 1000kgs
3.Automatic Constant Tension Controller
4.Magnetic Brake --- 100N.M, Magnetic Clutch --- 100N.M
5.Material Platform
6.Web Guide System
7.8 Set Knifes (SKD)
8.Machine is controller by PLC and Touch Screen

Samples
Product Paramenters
Machine Model
FPL1100L-H
FPL1300L-H
FPL2100L-H
Slitting speed
5-200m/min
5-200m/min
5-200m/min
Max. Web Width
1100mm
1300mm
2100mm
Max. Unwinding Diameter
1200mm
1200mm
1200mm
Max. Rewinding Diameter
600mm
600mm
600mm
Slitting Precision
±0.20mm
±0.20mm
±0.20mm
Dimensions
2600*1900*1700mm
2600*2100*1700mm
2800*3200*1700mm
Main motor
6 KW
6 KW
11 KW
Voltage
220V/380V
220V/380V
380V/50HZ/3Phase
Min. Slitting width
30mm
60mm
25mm
Machine weight
2500kg
2800kg
3300kg
Details Images

Slitting Unit

1-Set Slitting Unit comes with 8 Sets Rotary Knives in Standard Configuration.

Knife Set

Include Upper Knife Blade and Down Knife Set

Unwind Unit

With 1 pc 3" Air Expanding Shaft.
Can accept max diameter 1200mm material jumbo roll. (can be customized)

Rewind Unit

With2 pc 3" Air Expanding Shaft., can accept 600mm diameter roll.All with press cylinder.

Web Guide System

Control Web Go Straight.

Blower Fan

Machine Has Blower Fan To Blow Away The Trimmed Sides to collect waste.

Magnetic Brake

Control Unwind's Tension

Magnetic Clutch

Control Rewind's Tension
Company Profile
Ziye professionally research and manufacture flexo printing machine, label die cutting machine, slitting machine and
some related series products, we pay attention to talents and the technical innovation, insist on “technical innovation, national brand’ as development strategy, to make company as the leader in after printing machinery line.
Sincerity, quality,service is our operation principle, to be brave, aggressive, pragmatic, efficient is our company spirit. We
research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!
Product packaging
Interior:Wraping Film to keep dry and prevent from rusty
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
Machine will be covered by Oil to prevent Rusty in delivery
