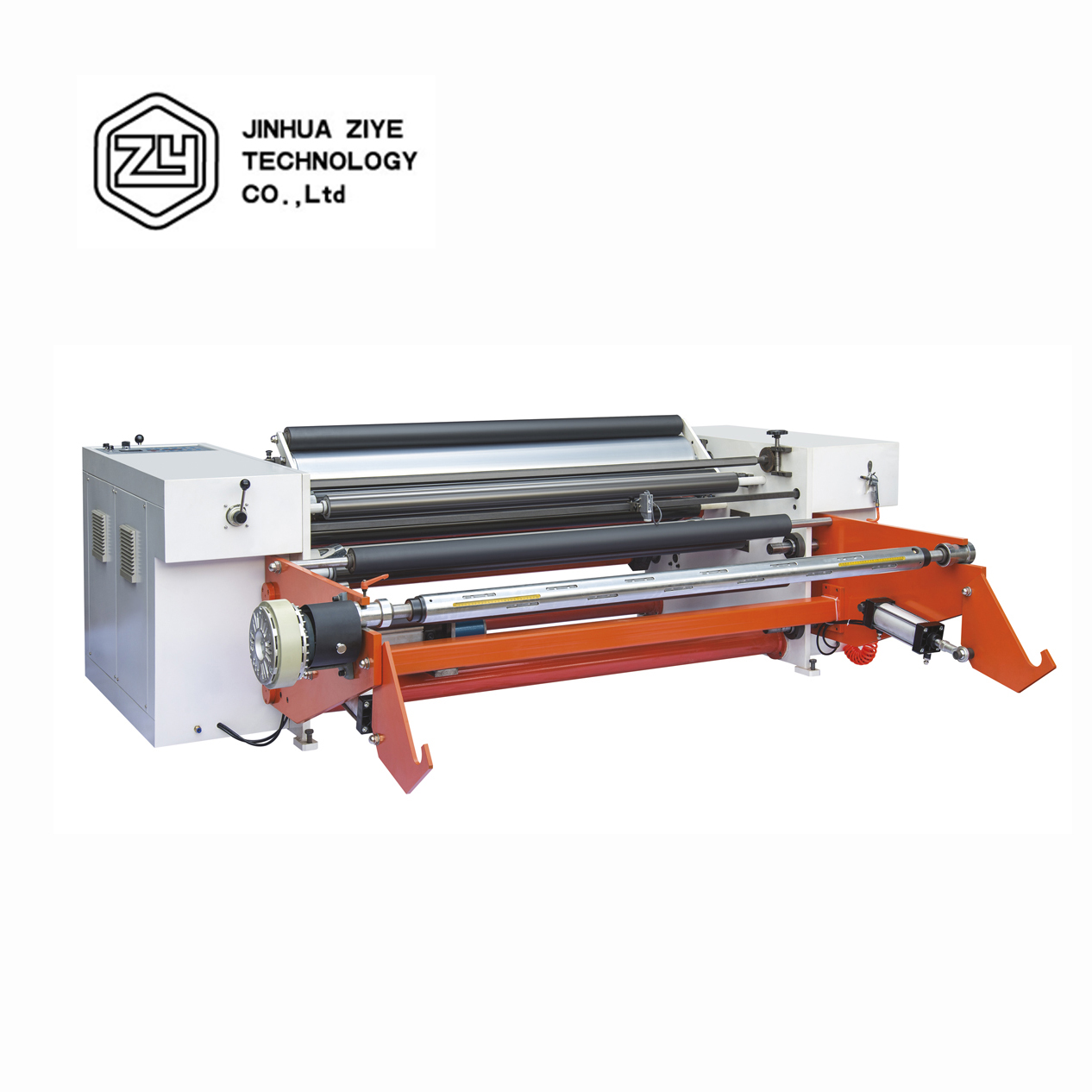

FPL1600L-N Meltblown Nonwoven Fabrics Slitting Rewinding Machine
≥1 Set
$9,800.00
- Customized logo (Min. Order: 1 Set)
- Customized packaging (Min. Order: 1 Set)
description
Product Description
FPL1600L-N Meltblown Nonwoven Fabrics Slitting Rewinding Machine
Our Company in digestion and absorption of advanced models based on the combination of domestic raw material characteristics, operating the body curve and operating habits designed for mid-range users FPL-series compact Slitter. The machine uses the most advanced drive technology and control technology, optimizing the coordination of machine, electricity, light, gas and liquid configuration, taking into account the ease of operation, stability, economy and high efficiency. 1.Unwinding Diameter 1000mm, Rewinding Diameter 1000mm
2.Pneumatic Up Lifter, For big roller, Max Weight is 1000kgs
3.Automatic Constant Tension Controller
4.Magnetic Brake --- 100N.M, Magnetic Clutch --- 100N.M
5.Material Platform
6.Web Guide System
7.8 Set Knifes
8.Machine is controller by PLC and Touch Screen
Main Configuration:
2.Pneumatic Up Lifter, For big roller, Max Weight is 1000kgs
3.Automatic Constant Tension Controller
4.Magnetic Brake --- 100N.M, Magnetic Clutch --- 100N.M
5.Material Platform
6.Web Guide System
7.8 Set Knifes
8.Machine is controller by PLC and Touch Screen
Samples
Product Paramenters
Machine Model | FPL1300L-N | FPL1600L-N |
Slitting speed | 5-200m/min | 5-200m/min |
Max. Web Width | 1300mm | 1600mm |
Max. Unwinding Diameter | 1000mm | 1000mm |
Max. Rewinding Diameter | 1000mm | 1000mm |
Slitting Precision | ±0.20mm | ±0.20mm |
Dimensions | 2600*1900*1700mm | 2600*2100*1700mm |
Main motor | 4 KW | 5.5 KW |
Voltage | 220V/380V | 220V/380V |
Min. Slitting width | 30mm | 30mm |
Machine weight | 2000kg | 2200kg |
Details Images
Slitting Unit --- Rotary Knife
Slitting Unit --- Razor Knife
Unwind Unit
With 1 pc 3" Air Expanding Shaft.
Can accept max diameter 1000mm material jumbo roll. (can be customized)
Rewind Unit
With1 pc 3" Air Expanding Shaft., can accept 1000mm diameter roll.Surface Rewind Function
Web Guide System
Control Web Go Straight.
Magnetic Brake
Control Unwind's Tension
Control Panel
PLC & Touch Screen
Company Profile
Ziye professionally research and manufacture flexo printing machine, label die cutting machine, slitting machine and
some related series products, we pay attention to talents and the technical innovation, insist on “technical innovation, national brand’ as development strategy, to make company as the leader in after printing machinery line.
Sincerity, quality,service is our operation principle, to be brave, aggressive, pragmatic, efficient is our company spirit. We
research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!
some related series products, we pay attention to talents and the technical innovation, insist on “technical innovation, national brand’ as development strategy, to make company as the leader in after printing machinery line.
Sincerity, quality,service is our operation principle, to be brave, aggressive, pragmatic, efficient is our company spirit. We
research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!
Product packaging
Interior:Wraping Film to keep dry and prevent from rusty
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
Machine will be covered by Oil to prevent Rusty in delivery
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
Machine will be covered by Oil to prevent Rusty in delivery
