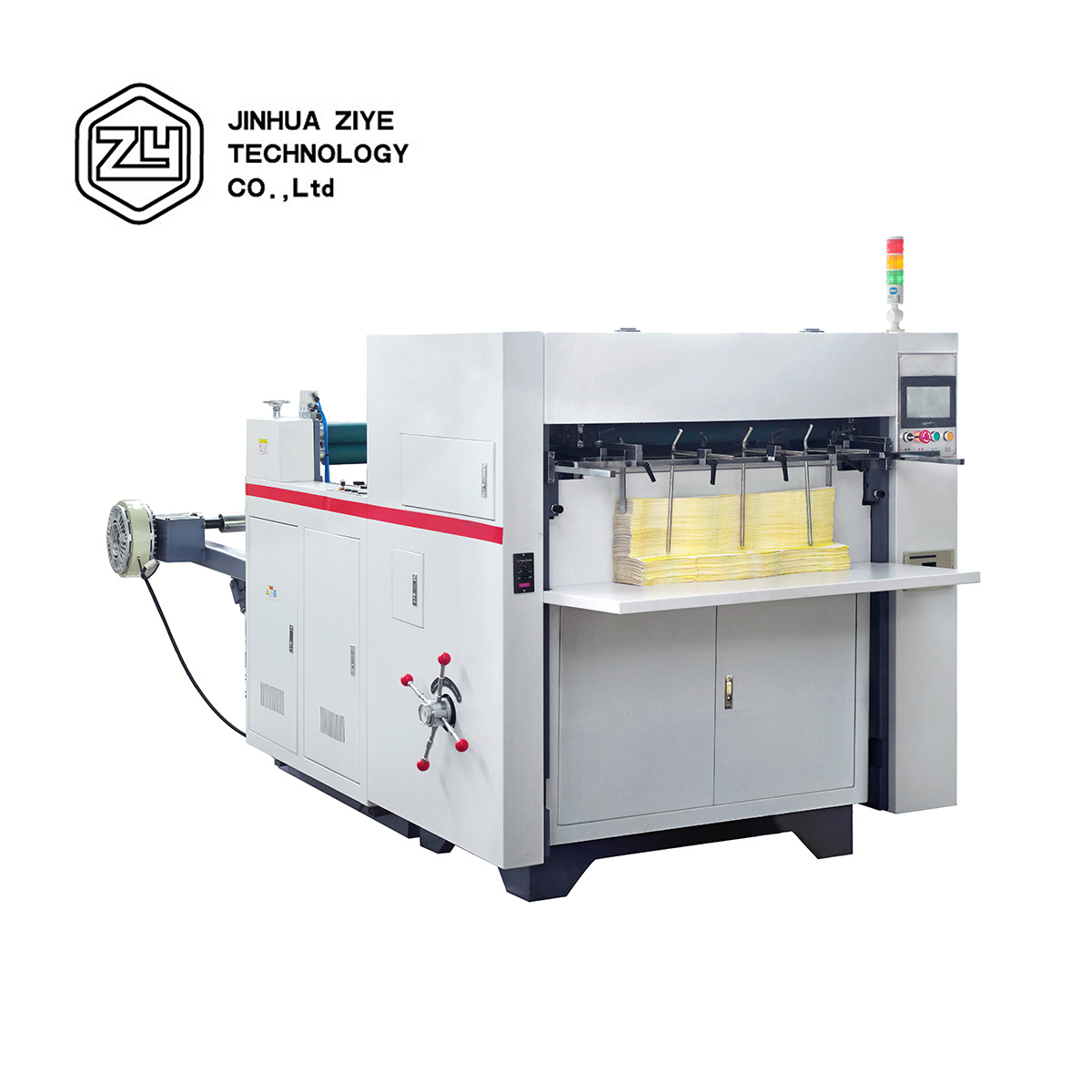

DC850 Automatic PVC Plastic Card Paper Cup Die Cutting Punching Machine With Video
≥1 Set
$15,800.00
- Customized logo (Min. Order: 1 Set)
- Customized packaging (Min. Order: 1 Set)
description
Product Description
DC850 Automatic PVC Plastic Card Paper Cup Die Cutting Punching Machine With Video
DC850 Die Cutting Machine Is A Professional Machine In Die-cutting Creasing And Embossing Various Pe Coated Paper, Normal Paper, Corrugating Paper And Plastic Material. It Applies To Paper Cup,paper Box,medical Package,wine Package,food Package And Other Environmental Protection Products.it Adopts Micro-computer,hmi,servo Positioning, alternating Current Frequency Converter,automatic Counting,photoelectric Rectifying,pneumatic Lock Cutting Plate, electromagnetic Clutch,centralized Oil Lubrication,,overload Protection And Distinctive Gearing.all Of These Is The Guarantee Of Steady Pressure,precise Positioning,smooth Running,safety And Reliability Operation.
Feature:
1. The Machine Base Adopts Worm And Gear System That Ensures The Powerful And Steady Pressure.2. Die Cutting Knife Plate And Plate Frame Can Be Take Out So That It Can Save Plate-changing Time.die Cutting Department Adopts Pneumatic Lock Version Of The Device.3. The Photoelectric Senior Check The Color Code Of Printing To Ensure Fix The Paper Position Accurately.4. High Quality Pneumatic Clutch Can Reflect Rapidly And Ensure High Security.5. High Precision Reducer, To Ensure Feed Accuracy. Servo Drive,easy To Operate.
Video
Application
1.PE coated Paper,
2.Normal Paper
3.Corrugating Paper
4.Plastic Material
5.Paper Cup, Paper Box, Medical Package, Wine Package, Food Package And Other Environmental Protection Products
This machine do PunchingandDie Cutting many materials!!!
Product Paramenters
Machine Model | DC950 | DC850 |
Die Cutting Speed | 0-160 times/min | 0-180 times/min |
Max. Unwind Diameter | 1400mm | 1400mm |
Max. Die Cutting Area | 950*550mm | 850*285mm |
Max. Die Cutting Pressure | 280 Tons | 120 Tons |
Suitable Material | 120-600gsm | 100-350gsm |
Precision of Die Cutting | ±0.1mm | ±0.1mm |
Total Power: | 11 kw | 7.5 kw |
Voltage | 380V | 380V |
Dimensions | 4000x2100x1485mm | 3000x1780x1600mm |
Machine Weight | 7500 kgs | 3500 kgs |
Details Images
Die Cutting Unit
Max Die Cut Area: 850*285mm
Cooperated With Wooden Knifes.
Unwind Unit
With 1 pc 3" Air Expanding Shaft.
Can accept max diameter 1400mm material jumbo roll.
(can be customized)
With Hydraulic Lift
Collector Unit
With Lifter and Down For Paper Pile
PLC Controller
Easy Control in Operation
Photoelectric Sensor
Track Printed Paper.
Drive System
Electric Parts
All High Quality and Well-Known Configurations.
Company Profile
Jinhua Ziye
professionally research and manufacture paper cup die cutting machine, paper cup making machine, paper cup flexo printing machine and some related series products, we pay attention to talents and the technical innovation, insist on “technical innovation, national brand’ as development strategy, to make company as the leader in after printing machinery line.
Sincerity, quality,service is our operation principle, to be brave, aggressive, pragmatic, efficient is our company spirit. We research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!
