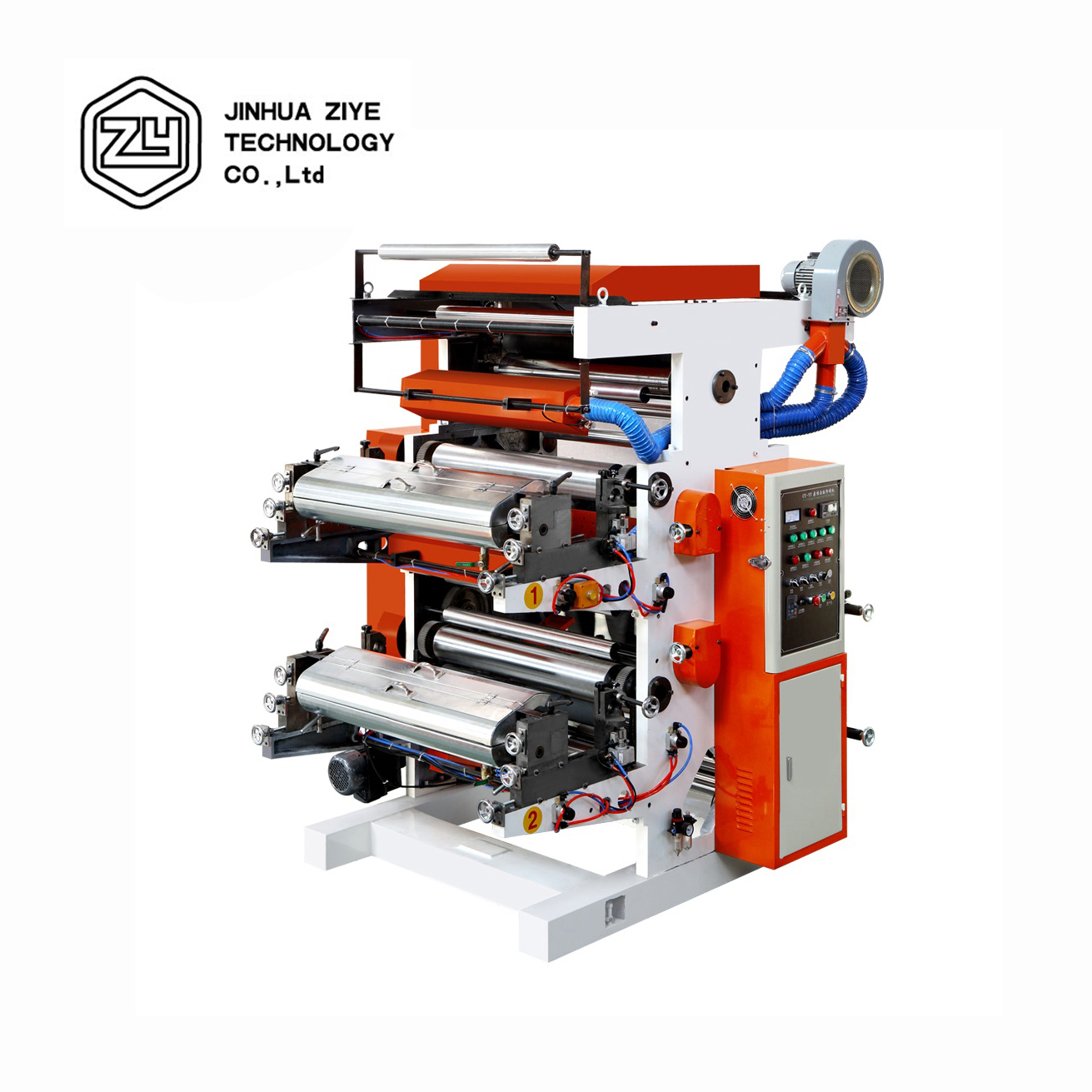

FP2800 2 Color Automatic Polythene Adhesive Label Flexo Printing Machine with Cheap Price
1-1000 Set
$10,000.00
≥1001 Set
$5,000.00
- Customized logo (Min. Order: 1 Set)
- Customized packaging (Min. Order: 1 Set)
description
Product Description
FP2800 2 Color Automatic Polythene Adhesive Label Flexo Printing Machine with Cheap Price
The machine can finish material-feeding,printing, drying, laminating, rewinding in one process is anideal machine for printing plastic film, paper and etc.
Feature:
1. Easy operation, gentle starting, accurate color print.
2. The meter counter can set print quantity according the requirements, stop the machine automatically at the quantity or when the material is cut off.
3. After lifting and lowering the printing plate cylinder manually, It will automatically stir the printing in.
4. The printing in is spread by the anilox cylinder roller with evenly ink.
5. Reliable dry system, coordinate high-speed operation, engine off automatic abruption.
6. 360 degrees continuously adjustable longitudinal to register device.
7. Frequency conversion velocity modulation, adaption different pointing speed.
8. On the version roller sear and receives on material to be loaded with the spot to move and the pause button, is advantage for when the justification operates the machine.
2. The meter counter can set print quantity according the requirements, stop the machine automatically at the quantity or when the material is cut off.
3. After lifting and lowering the printing plate cylinder manually, It will automatically stir the printing in.
4. The printing in is spread by the anilox cylinder roller with evenly ink.
5. Reliable dry system, coordinate high-speed operation, engine off automatic abruption.
6. 360 degrees continuously adjustable longitudinal to register device.
7. Frequency conversion velocity modulation, adaption different pointing speed.
8. On the version roller sear and receives on material to be loaded with the spot to move and the pause button, is advantage for when the justification operates the machine.
Samples
Plastic Films (PVC, PP, PET...)
All kinds of Paper (below 250gsm)
Non Woven Fabric
Product Paramenters
Machine Model | FP2600 | FP2800 | FP21000 |
Printing speed | 50m/min | 50m/min | 50m/min |
Max. Web Width | 600mm | 800mm | 1000mm |
Max. Unwinding/Rewind Diameter | 500mm | 500mm | 500mm |
Printing Length | 191-1000mm | 191-1000mm | 191-1000mm |
Color Quantity | 2 Colors | 2 Colors | 2 Colors |
Dimensions | 2500*1600*2000mm | 2500*1800*2000mm | 2500*2000*2000mm |
9Main motor | 9 KW | 12 KW | 15 KW |
Voltage | 220V/380V | 220V/380V | 220V/380V |
Gear | Straight/Helical Gear | Straight/Helical Gear | Straight/Helical Gear |
Machine weight | 1600 kgs | 1800 kgs | 2100 kgs |
Machine Width Can Be Customized
1200mm, 1400mm... Are All Can Be Customized.
Details Images
Flexo Printing Unit
Printing Station Comes with Ink Rubber Roller, Anilox Cylinder, Printing Plate Cylinde and Ink Container.
Unwind Unit
With 1 pc 3" Air Expanding Shaft, Can accept max diameter 500mm material jumbo roll. (can be customized)
Rewind
With 2 pc 3" Air Expanding Shaft, Can accept max diameter 500mm material jumbo roll. (can be customized)
Web Guide System
Control paper move straightly.(Optional)
Magnetic Brake and Clutch
With One 50 N.M Magnetic Brake, Two 50 N.M Magnetic Clutch (Optional)
Auto Constant Tension Controller
With 2 Set Auto Constant Tension Controller For Unwind and Rewind (Optional)
Heating & Drying Unit
1).Each Printing Unit comes with Heating Drying Oven.
2).Infrared Heating Drying Oven is placed on material and after each printing station.
2).Infrared Heating Drying Oven is placed on material and after each printing station.
Gear Driving System
Machine Drive By Straight/Helical Gear(Optional). Low Noise and Stable Operation
Control Panel
1).Power Supply, Stop Button, Start Button and Emergency Stop.
2).Anilox Roller Rotation Button for each Printing Station.
Length Counter and Speed Controller
2).Anilox Roller Rotation Button for each Printing Station.
Length Counter and Speed Controller
